RE: DELFT 3D WAVE - error message 'file norm end' in MDW file.

AF
ALEJANDRO FELIPE, modified 6 Years ago.

DELFT 3D WAVE - error message 'file norm end' in MDW file.

Youngling Posts: 9 Join Date: 11/15/13 Recent Posts
Good morning partners:
I´m totally misplaced because I have tried everything without positive results, I explain:
According to the manuals , I´ve developed the next archives:
1.- Grid file: regular grid from splines and ortogonality. (M=244 ;N=244). Used RGFGRID.
2.- Depth file: Used QUICKIN , based in boundary file which represent the line of the coast, the grid file and drawn the polygon out of the grid.
I start wave alone and input the information of the project:
- Insert the grid / depth file. The rest of parameters are not changed.
- Time frame: I have input only one period with tide. (1 m)
- Boundaries: Simplified ( Defined by orientation – NorthEast and boundaries conditions uniform/ specification of boundaries :spectra.)
- physical parameters: Introduced wind ( from it comes – 270 / 20msec) The rest no changed.
- output curves:
a) If I´ve marked the two options for computational grids: proyecto 5_5 and output for specific locations (table / 1D spectra / 2D spectra)
b) I only mark proyecto5_5.
c) No one marked.

So that, If I´ve marked the a) option, the swan doesn´t work and gives me the next error:
“C:\Deltares\Delft3D_4.01.00.rc.07\tutorial\wave\5_RETIN\Retin_feb14\proyecto_5>rem exit>>… End of SWAN run.
*** ERROR: file ‘norm end’ expected to signal a correct SWAN calculation.”
But If I only mark the b) or c) option it works perfectly but I don´t get any result, graphic or product then this is the same than nothing.

Another thing There is a part of the mdw file which the Hs computed is cero, could it be the problem?.( I show you in an image)

Could you help me?.

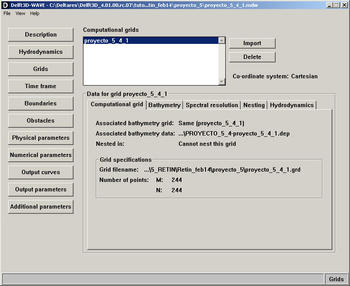

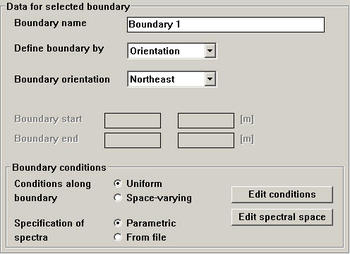

I add the images below.








Thanks a lot partners.
Qinghua Ye, modified 6 Years ago.

RE: DELFT 3D WAVE - error message 'file norm end' in MDW file.

Jedi Council Member Posts: 612 Join Date: 3/2/11 Recent Posts
Dear ALEJANDRO,

It seems to me like a swan problem. Can you do the following:
1) kill the process before the Delft3D-WAVE crashed. Then you have the input files generated by WAVE for SWAN.
2) copy the files: INPUT, WNDNOW, BOTNOW, NEST***, grid file to a seperate folder.
3) copy swan exe from the Delft3D root folder to the seperate folder. Then run the swan command. By this you should be able to generate a Errfile and PRINT file. See what said there? There must some swan error message in those files.

Hope this will help a bit,

Qinghua
AF
ALEJANDRO FELIPE, modified 6 Years ago.

RE: DELFT 3D WAVE - error message 'file norm end' in MDW file.

Youngling Posts: 9 Join Date: 11/15/13 Recent Posts
Ok Qinghua , I´ll try it but it crush very quickly and it is difficult to kill before that. Dont you think it could a different solution?

Thank for all
AF
ALEJANDRO FELIPE, modified 6 Years ago.

RE: DELFT 3D WAVE - error message 'file norm end' in MDW file.

Youngling Posts: 9 Join Date: 11/15/13 Recent Posts
OK, I´ll try it but ...that process goes too quickly and I´m not sure that I´ll do correctly...

Could it be another possibility about installation, version incompatibility or another thing??

Thanks for all
Qinghua Ye, modified 6 Years ago.

RE: DELFT 3D WAVE - error message 'file norm end' in MDW file.

Jedi Council Member Posts: 612 Join Date: 3/2/11 Recent Posts
Dear ALEJANDRO,

I won't think it is relevant to version incompatibility.

Do you really have a output loc file in the directory? The description you wrote above looks all normal. Can you post the swn-diag file here? I have no clue where it goes wrong.

Regards,

Qinghua
